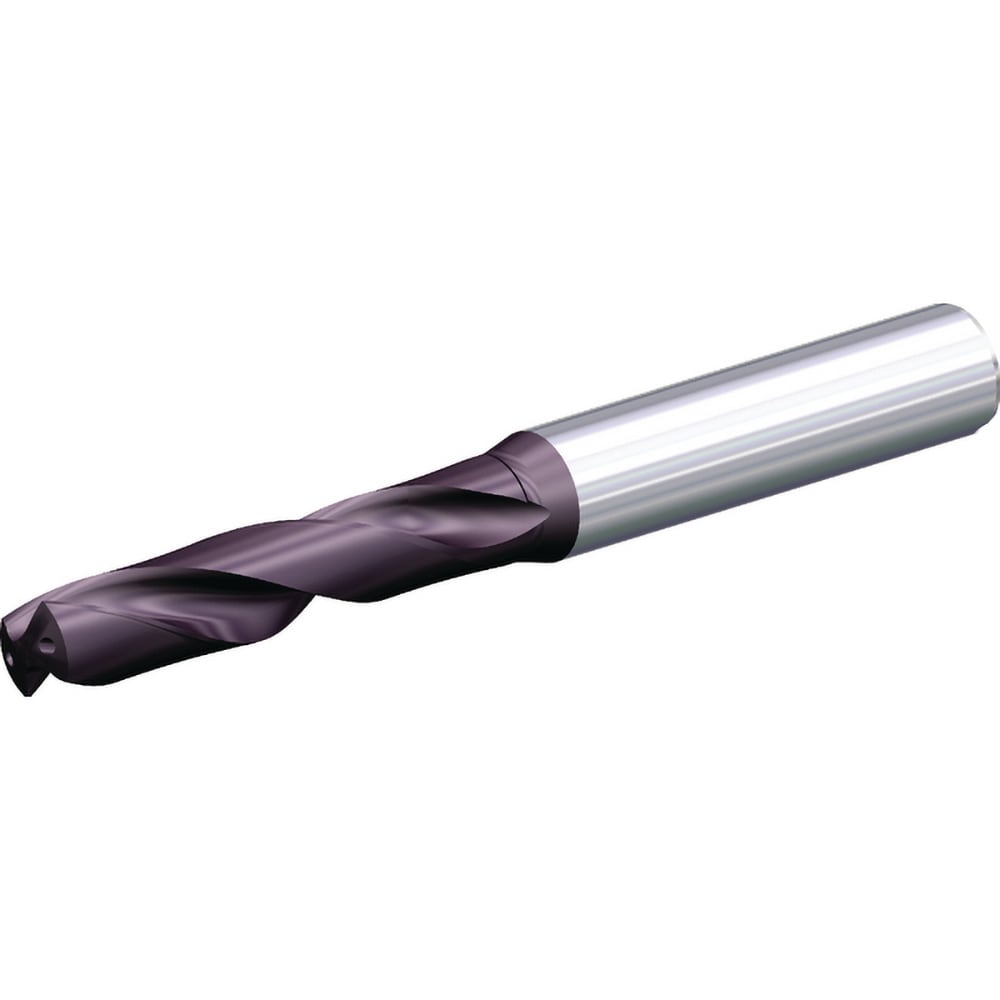

Jobber Drill: 4.15 mm Dia, 140 deg Point, Solid Carbide
Item #: 13210802
Brand: Kennametal
Model #: 6393596
Product Specifications
| Drill Bit Size (mm) | 4.15 |
| Drill Bit Size (Decimal Inch) | 0.1636 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | AlTiN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Series | B211 |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.62 |
| Drill Point Length (Decimal Inch) | 0.0244 |
| Shank Type | Straight |
| UNSPSC Code | 23241634 |
