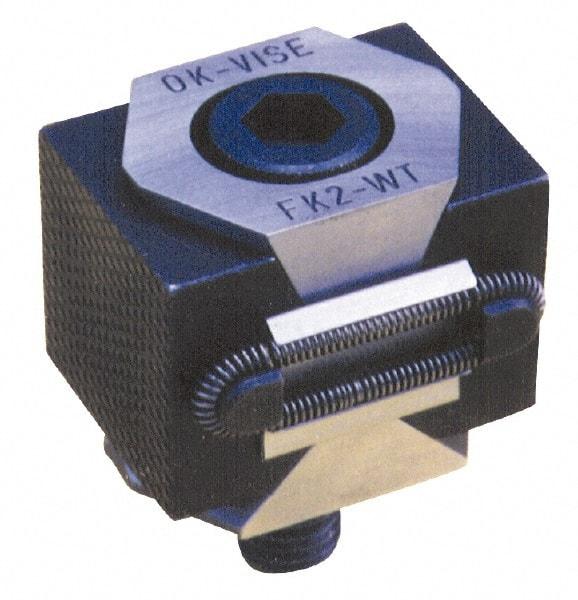

Mitee-Bite - 33,000 Lb Holding Force Double Vise Wedge Clamp - 2.24" Wide x 1.65" Deep x 1.65" High Base, 48 to 52 HRC, 2.24 to 2.64" Jaw Spread, 250 Lb/Ft Torque, 5/8-11 Screw Thread
Item #: 67112102
Brand: Mitee-Bite
Model #: 47180
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | Vise |
| Single or Double Wedge | Double |
| Screw Thread Size | 5/8-11 |
| Machinable | No |
| Holding Force (Lb.) | 33000.00 |
| Torque (Ft/Lb) | 250.00 |
| Base Height (Decimal Inch) | 1.6500 |
| Base Width (Decimal Inch) | 2.2400 |
| Base Depth (Decimal Inch) | 1.6500 |
| Jaw Hardness (HRC) | 48 to 52 |
| Minimum Jaw Spread (Decimal Inch) | 2.2400 |
| Optimum Jaw Spread (Decimal Inch) | 2.4000 |
| Maximum Jaw Spread (Decimal Inch) | 2.6400 |
| Projection From Base (Decimal Inch) | 0.2000 |
| Overall Width (Decimal Inch) | 2.2400 |
| Includes | Mounting Screw |
