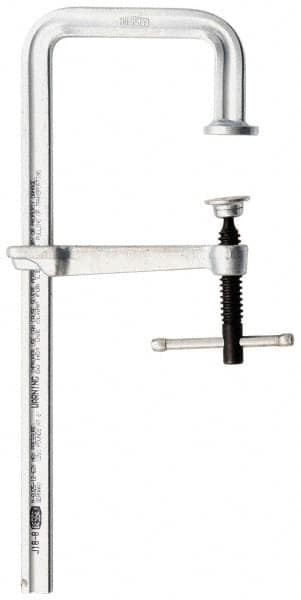

Bessey - 4-3/4" Deep Throat, 8" Max Capacity, Step Over Sliding Arm Clamp - 880 Lb Clamping Pressure, 5/8" Spindle Diam
Item #: 67105874
Brand: Bessey
Model #: J18-8
Exact Tooling IR#: 04
Features and Benefits
Step-over sliding arm clamps are used for reaching over an obstacle that is in the way of clamping a workpiece. They can be used with an extender block to project over the lip on channel iron, angle-iron, I-beams and areas where clearance is required.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | Step-Over |
| Maximum Capacity (Inch) | 8 |
| Maximum Capacity (Decimal Inch) | 8.0000 |
| Throat Depth (Inch) | 4-3/4 |
| Throat Depth (Decimal Inch) | 4.7500 |
| Handle Style | T-Handle |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 880 |
| Series | J |
| Spindle Diameter (Decimal Inch) | 0.6250 |
| Spindle Material | High Carbon Steel |
| Rail Size (Inch) | 55/64 x 13/32 |
| Rail Length (Inch) | 8 |
| Pad Material | Steel |
| Includes | Standard Swivel Pad or MorPad |
| Step Over (Decimal Inch) | 2.25 |
