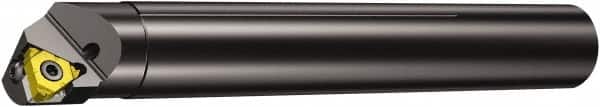

Sandvik Coromant - Internal/External Thread, Right Hand Cut, 1/2" Shank Width x 12.3mm Shank Height Indexable Threading Toolholder - 8" OAL, R166.0L-11 Insert Compatibility, R166.0KF..C Toolholder, Series T-Max U-Lock
Item #: 67021691
Brand: Sandvik Coromant
Model #: 5742008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (mm) | 12.30 |
| Shank Height (Decimal Inch) | 0.4843 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Insert Compatibility | R166.0L-11 |
| Series | T-Max U-Lock |
| Toolholder Style | R166.0KF..C |
| Through Coolant | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Inch) | 8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 8.0000 |
| Center to Cutting Edge (mm) | 8.99 |
| Center to Cutting Edge (Decimal Inch) | 0.3540 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| Head Length (Inch) | 3 |
| Head Length (Decimal Inch) | 3.0000 |
| Shank Length (Inch) | 8 |
| Shank Length (Decimal Inch) | 8.0000 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.6300 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
