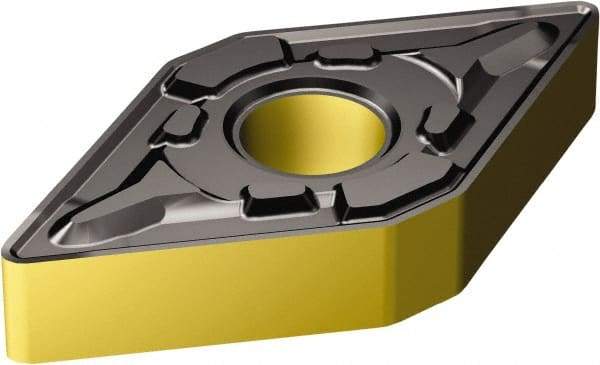

Sandvik Coromant - DNMG542 PR Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 55° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 66769761
Brand: Sandvik Coromant
Model #: 6265947
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 542 |
| Material | Carbide |
| Length (mm) | 18.58 |
| Length (Decimal Inch) | 0.7315 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PR |
| Insert Length (Decimal Inch) | 0.7315 |
| OverallLength (mm) | 19.38 |
| Overall Length (Decimal Inch) | 0.7630 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | DNMG 19 06 08-PR 4325 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
