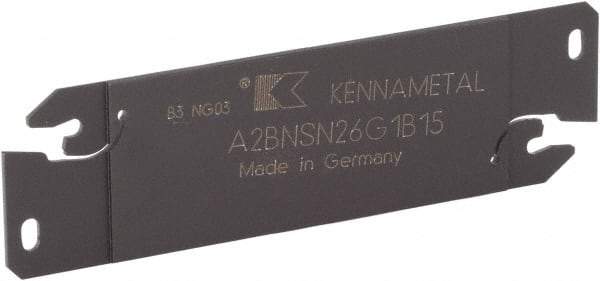

Kennametal - 1.0236" Blade Height, 0.0709" Blade Width, 3.5531" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 15mm Max Depth of Cut, A2BNSN Blade, A2 Cut-Off Series
Item #: 66703059
Brand: Kennametal
Model #: 3749171
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 1.80 |
| Blade Width (Decimal Inch) | 0.0709 |
| Blade Overall Length (mm) | 90.25 |
| Blade Overall Length (Decimal Inch) | 3.5531 |
| Blade Style | A2BNSN |
| Insert Style | A2 014... |
| Insert Width (mm) | 1.40 |
| Insert Width (Decimal Inch) | 0.0551 |
| Series | A2 Cut-Off |
| Insert Seat Size | 1B |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Height (mm) | 21.45 |
| Cutting Height (Decimal Inch) | 0.8445 |
| Minimum Insert Width (Decimal Inch) | 0.0550 |
| Complete Insert Compatibility | A2014N00CM01 |
