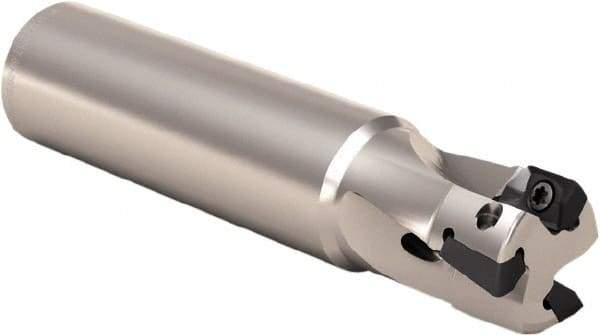

Seco - 12mm Cut Diam, 8mm Max Depth of Cut, 16mm Shank Diam, 135mm OAL, Indexable Square Shoulder End Mill - XO.. 0903.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Micro Turbo
Item #: 66630732
Brand: Seco
Model #: 53131
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 135.00 |
| Overall Length/Projection (Decimal Inch) | 5.3150 |
| Lead Angle | 90 |
| Series | Micro Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 0903.. |
| Shank Length (Decimal Inch) | 4.1339 |
| Shank Length (mm) | 105.00 |
| Maximum RPM | 37500 |
