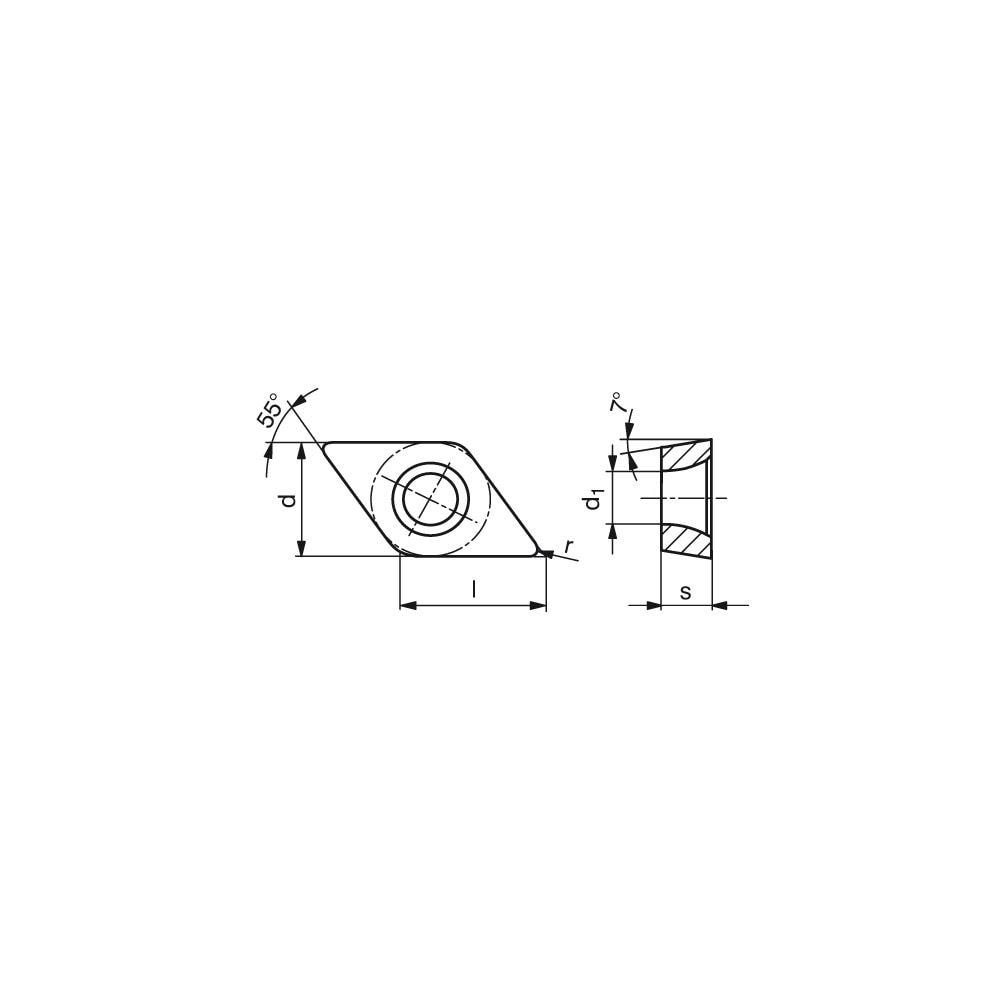

Turning Insert: DCXT2150LMR, Carbide
Item #: 26240408
Brand: Ceratizit
Model #: 70260100
Product Specifications
| ANSI Insert Code | DCXT21.50 |
| ISO Insert Code | DCXT070201 |
| Relief Angle | 7 |
| Insert Style | DCXT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | CWN2120 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | DCXT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3051 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | X |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | DCXT 070202EN-M81 CWN2120 |
| Chip Breaker | M81 |
| ANSI Size Code | 21.50 |
| ISO Size Code | 070201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50 |
