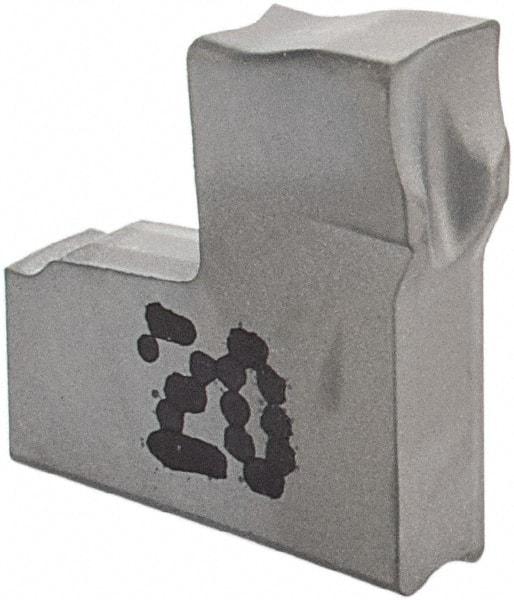

Iscar - TAG2 J IC20 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad, Single End
Item #: 66485202
Brand: Iscar
Model #: 6003653
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 2 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | TAG N2J |
