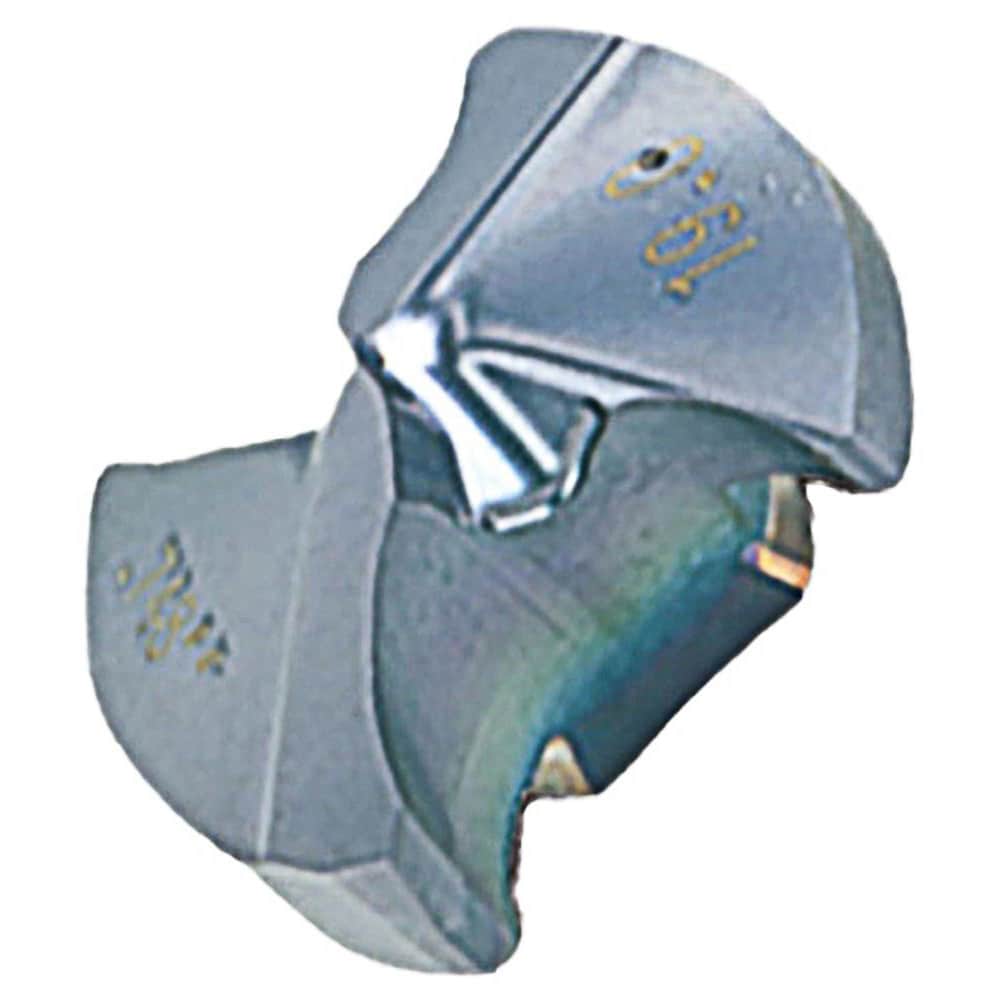

Replaceable Drill Tips: YAB2100R01 IN2005, 0.8268" Dia, 21.00 mm Dia, 140 deg Point, IN2005
Item #: 48551501
Brand: Ingersoll Cutting Tools
Model #: 5100977
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8268 |
| Cutting Diameter (mm) | 21.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Material Grade | P15; P30 |
| Series | YAB |
| Coating Process | PVD |
| Insert Seat Size | 21 |
| Functional Length (Decimal Inch) | 0.2240 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ANSI |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3740 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | YAB2100R01 IN2005 |
| Coolant Through | No |
| Flute Length (mm) | 6.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | YAB |
| UNSPSC Code | 23242105 |
| Applications | Spot Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
