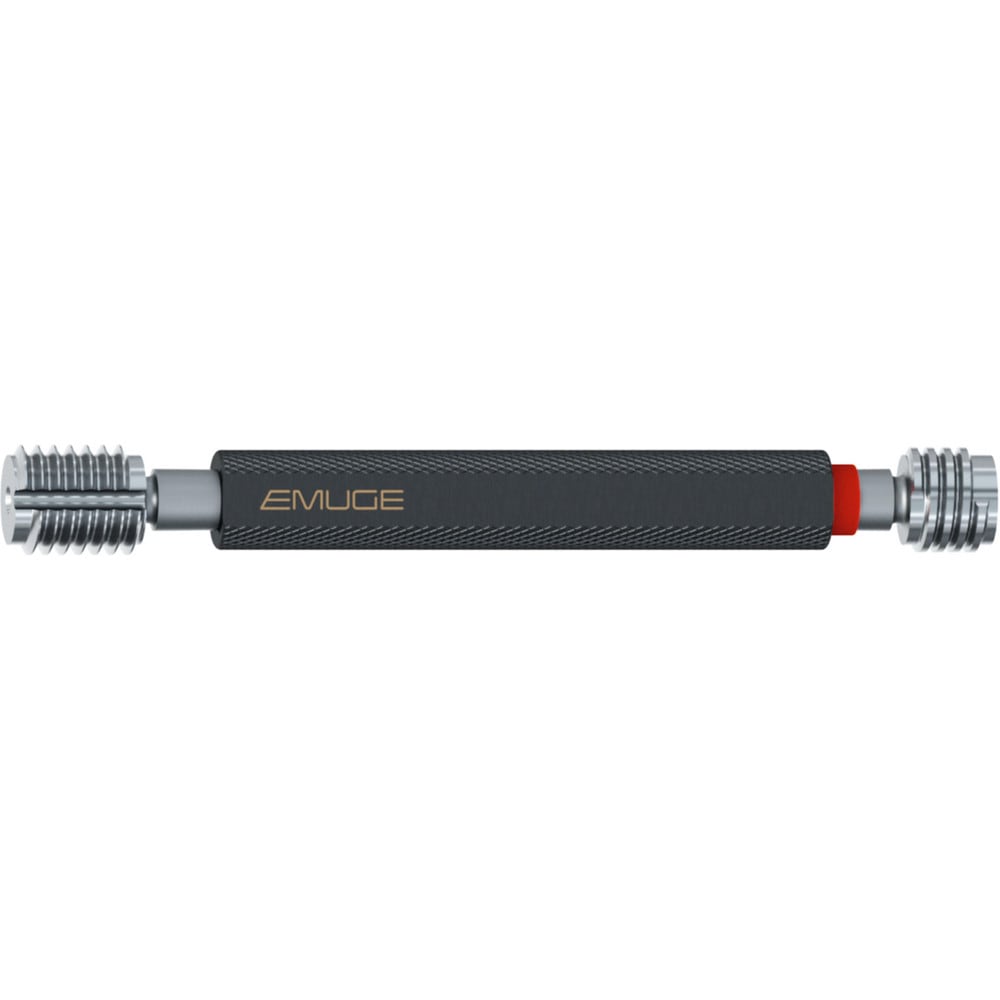

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: #4-48; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.0958; Go Pitch Diameter (mm): 2.4330; No Go Pitch Diameter (mm): 2.5600; No Go Pitch Diameter (Decimal Inch): 0.10080
Item #: 02814473
Brand: Emuge
Model #: L0100160.5037
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | #4-48 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.0958 |
| Go Pitch Diameter (mm) | 2.4330 |
| No Go Pitch Diameter (mm) | 2.5600 |
| No Go Pitch Diameter (Decimal Inch) | 0.10080 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 2.3030 |
| Overall Length (mm) | 58.5000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | Gauge dimensions according to ANSI/ASME B1.17; NIST; DIN2280 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNF |
| UNSPSC Code | 41111619 |
