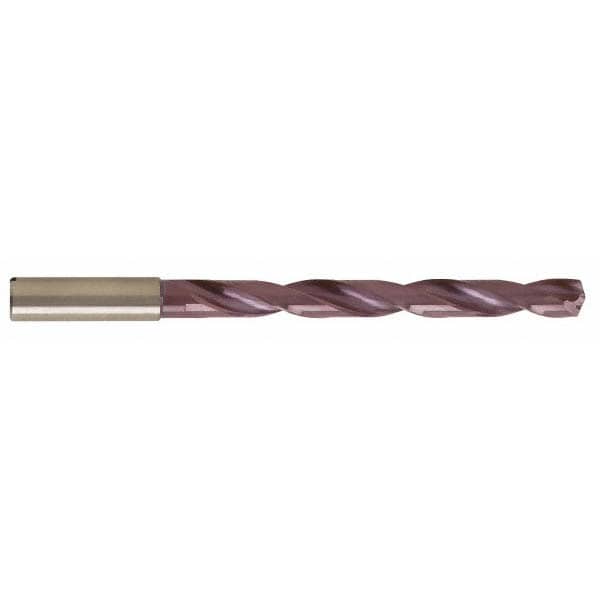

Taper Length Drill Bit: Series 5512, 5/8" Dia, 140 ° Point, Solid Carbide
Item #: 05790803
Brand: Guhring
Model #: 9055120158700
Product Specifications
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Cutting Direction | Right Hand |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Flute Length x Diamter Ratio | 7xD |
| Overall Length (mm) | 204 |
| Material Application3 | Hard Material; Stainless Steel; Brass; Cast Iron; Steel; Nickel Alloy; Titanium Alloy |
| Series | 5512 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Flute Length X Diameter Ratio | 7xD |
| Shank Length (Decimal Inch) | 2.0472 |
| Flute Length (mm) | 152.00 |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Material Grade | Submicron |
| UNSPSC Code | 23241600 |
