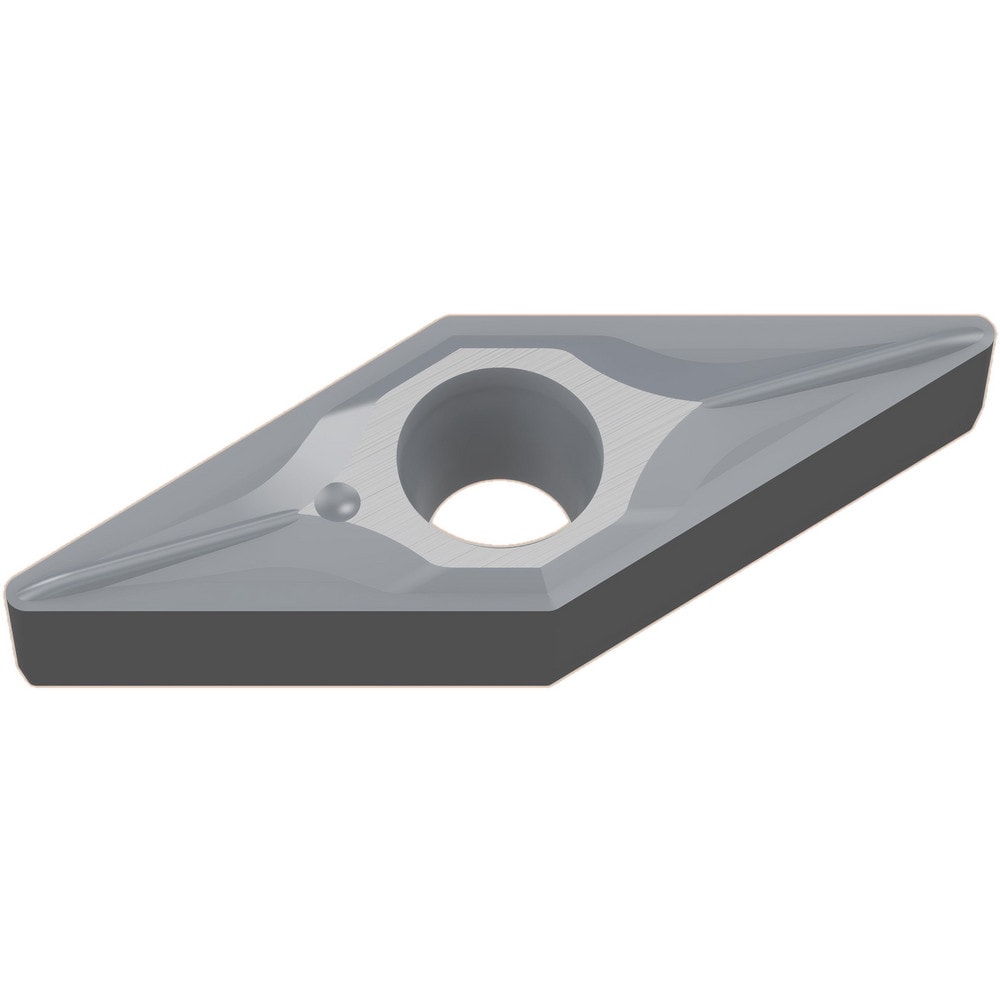

Turning Insert: VBMT220.5FP NX2525, Cermet
Item #: 05775945
Brand: Mitsubishi
Model #: 691913
Product Specifications
| ANSI Insert Code | VBMT220.5 |
| ISO Insert Code | VBMT110302 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35 |
| Manufacturer Grade | NX2525 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Cermet |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | B |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | FP |
| ANSI Size Code | 220.5 |
| ISO Size Code | 110302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
