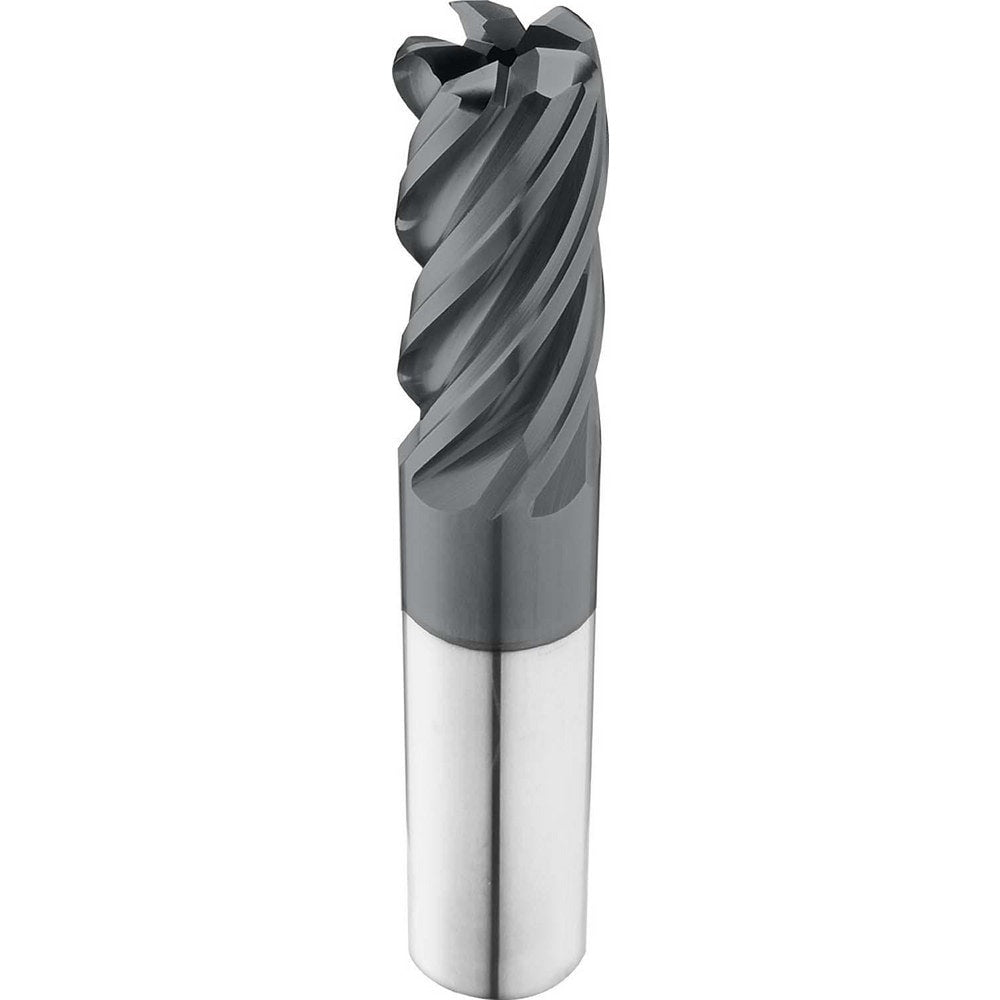

Corner Radius End Mill: 1" Dia, 3" LOC, 0.0600" Radius, 5 Flute, Solid Carbide
Item #: 65055105
Brand: SGS
Model #: 37715
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 6 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 6.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Corner Radius Tolerance | -0.0020 to 0.0000 in |
| Mill Diameter Tolerance | -0.0020/0.0000 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | Z5C |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Proprietary Coating Designation | Ti-NAMITE-A |
| For Use With. | End Mill Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | 37715 |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 6 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 6.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Corner Radius Tolerance | -0.0020 to 0.0000 in |
| Mill Diameter Tolerance | -0.0020/0.0000 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | Z5C |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Proprietary Coating Designation | Ti-NAMITE-A |
| For Use With. | End Mill Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | 37715 |
| MSC Part # | 65055105 |
| Mfr Part # | 37715 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
