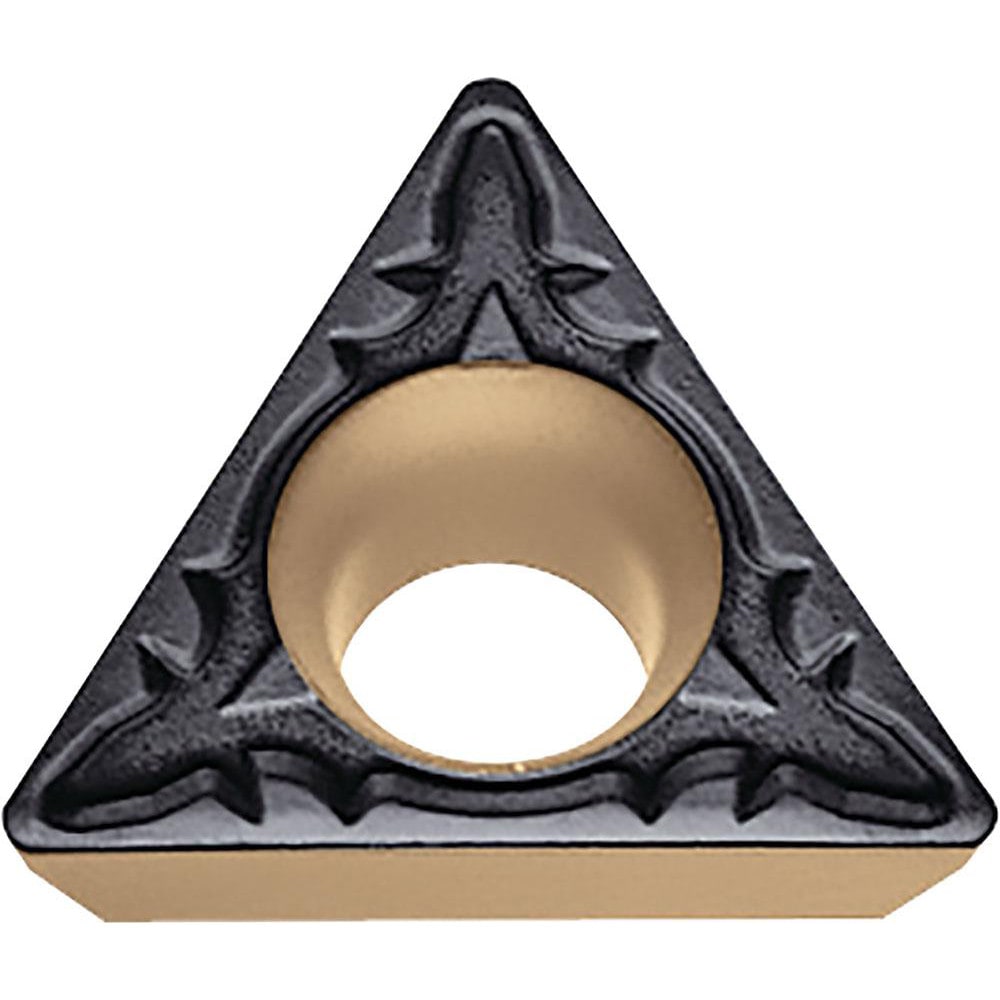

Turning Insert: TPMT18151XP CA115P, Carbide
Item #: 04467080
Brand: Kyocera
Model #: TML00417
Product Specifications
| ANSI Insert Code | TPMT1.81.51 |
| ISO Insert Code | TPMT090204 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 60 |
| Manufacturer Grade | CA115P |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | None |
| Iso Code | TPMT090204XP |
| Manufacturers Catalog Number | TPMT18151XPCA115P |
| Chip Breaker | XP |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 1.81.51 |
| ISO Size Code | 090204 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 18151 |
