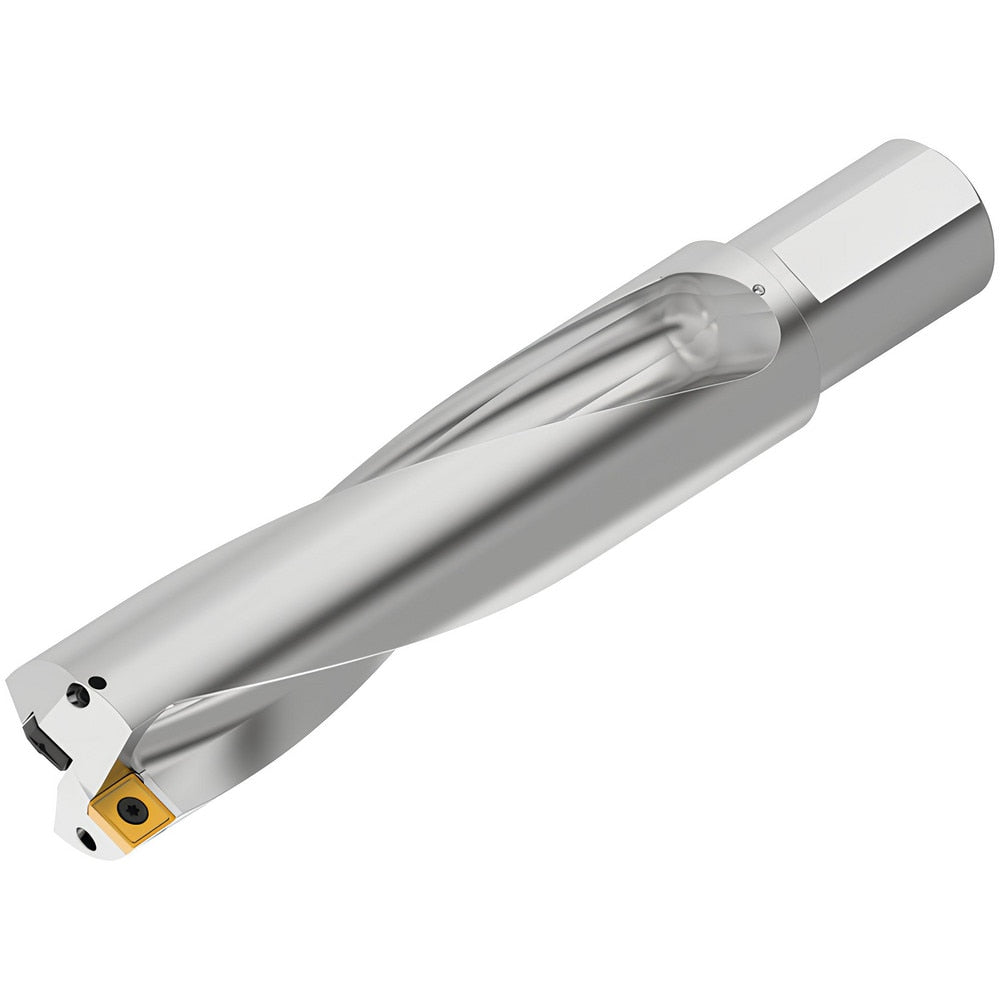

Indexable Insert Drill: DFPR640R4WB50M, 65.00 mm Max Dia, 256.00 mm Max Depth, 4xD, 50.00 mm Shank Dia
Item #: 04814372
Brand: Kennametal
Model #: 7030767
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 65.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.5591 |
| Maximum Drill Depth (Decimal Inch) | 10.0787 |
| Maximum Drill Depth (mm) | 256.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 200608; 180610 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 14.6063 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 10.2756 |
| Flute Length (mm) | 256.00 |
| Body Length | 291.00 |
| Body Length (Decimal Inch) | 14.6063 |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 20.50x6.20; 18.70x6.20 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR180610__O; DFPR200608__I |
| Collar Diameter (Decimal Inch) | 2.4547 |
| Collar Diameter (mm) | 62.35 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M6-1.0x14T25 |
| Coolant Through | Yes |
