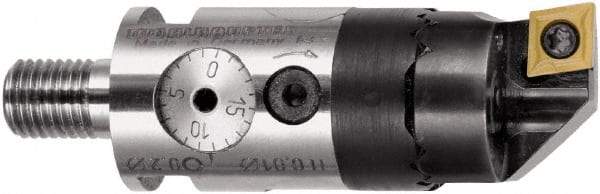

WOHLHAUPTER - 15mm Body Diam, Manual Single Cutter Boring Head - 5/8" to 20.1mm Bore Diam, 15.9mm Bar Hole Diam
Item #: 66310129
Brand: WOHLHAUPTER
Model #: 248001
Exact Tooling IR#: 04
Features and Benefits
Boring heads with a single cutter (single edge) are used for general purpose finishing and roughing operations. They may also be used where machine power is limited.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Single Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 15.00 |
| Body Diameter (Decimal Inch) | 0.5910 |
| Mount Type | Threaded Mount |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.5910 |
| Thread Size | M8 |
| Series | Wohlhaupter 248 |
| Boring Bar Hole Diameter (mm) | 15.90 |
| Boring Bar Hole Diameter (Decimal Inch) | 0.6259 |
| Minimum Bore Diameter (Inch) | 5/8 |
| Minimum Bore Diameter (Decimal Inch) | 0.6250 |
| Minimum Bore Diameter (mm) | 15.90 |
| Maximum Bore Diameter (mm) | 20.10 |
| Maximum Bore Diameter (Decimal Inch) | 0.7910 |
| Projection (mm) | 26.00 |
| Projection (Decimal Inch) | 1.0240 |
| Overall Length (mm) | 42.00 |
| Overall Length (Decimal Inch) | 1.6540 |
| Diameter Direct Reading (Decimal Inch) | 0.0004 |
| Machine Compatibility | CNC; Manual |
| Insert Holder Size | 06 |
| Rate of Feed (Decimal Inch) | 0.0060 |
