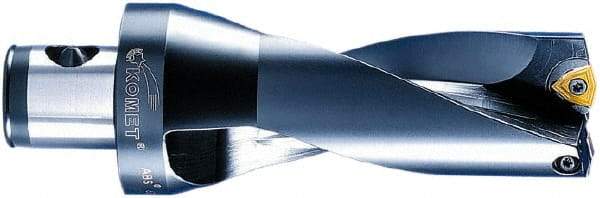

Komet - 134mm Max Drill Depth, 2xD, 67mm Diam, Indexable Insert Drill - 2 Inserts, ABS 80 Modular Connection Shank
Item #: 66235680
Brand: Komet
Model #: V1436700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V14 |
| Drill Diameter (mm) | 67.00 |
| Drill Diameter (Decimal Inch) | 2.6378 |
| Maximum Drill Depth (mm) | 134.00 |
| Maximum Drill Depth (Decimal Inch) | 5.2756 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.7362 |
| Maximum Drill Diameter (mm) | 70.00 |
| Overall Length/Projection (mm) | 189.00 |
| Overall Length/Projection (Decimal Inch) | 7.4409 |
| Insert Compatibility | WOEX 100504 |
| Body Length (Decimal Inch) | 7.4409 |
| Body Length (mm) | 189.00 |
| Series | KUB |
