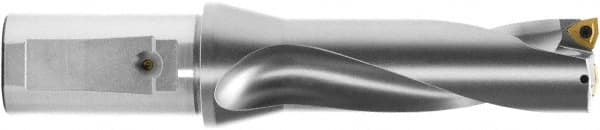

Komet - 36mm Max Drill Depth, 2xD, 18mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Combination Shank
Item #: 66233461
Brand: Komet
Model #: V4331802
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V43 |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 36.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4173 |
| Shank Type | Combination |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.00 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Insert Compatibility | WOEX 030204 |
| Body Length (Decimal Inch) | 2.3622 |
| Body Length (mm) | 60.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | KUB Trigon |
