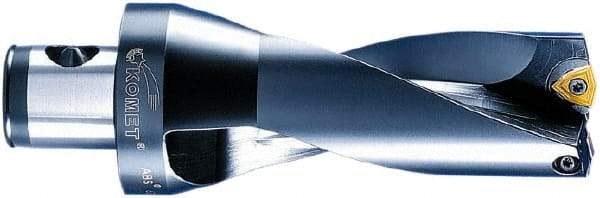

Komet - 5.811" Max Drill Depth, 3xD, 1-15/16" Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 66231929
Brand: Komet
Model #: V1374920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V13 |
| Drill Diameter (Inch) | 1-15/16 |
| Drill Diameter (Decimal Inch) | 1.9375 |
| Maximum Drill Depth (Decimal Inch) | 5.8110 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.0550 |
| Overall Length/Projection (Decimal Inch) | 7.9770 |
| Insert Compatibility | WOEX 080404 |
| Body Length (Decimal Inch) | 7.9770 |
| Series | KUB |
