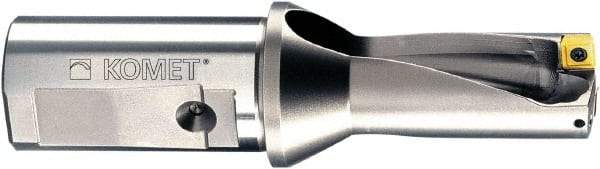

Komet - 66mm Max Drill Depth, 2xD, 33mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Straight Shank
Item #: 66223579
Brand: Komet
Model #: U1023300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U10 |
| Drill Diameter (mm) | 33.00 |
| Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5984 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.3189 |
| Maximum Drill Diameter (mm) | 33.50 |
| Overall Length/Projection (mm) | 155.00 |
| Overall Length/Projection (Decimal Inch) | 6.1024 |
| Insert Compatibility | SOEX 090408 |
| Body Length (Decimal Inch) | 3.7402 |
| Body Length (mm) | 95.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | KUB Quatron |
