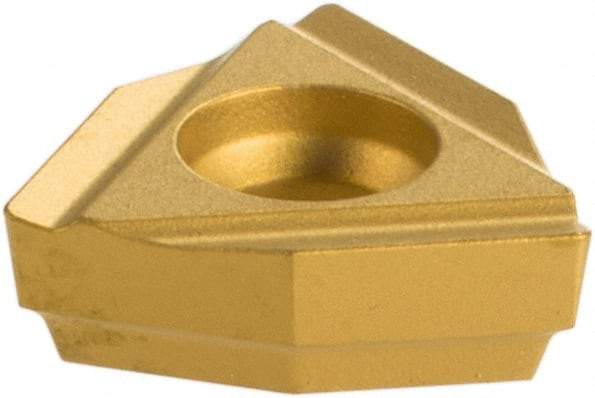

Komet - WOHX03T102 G12 Grade BK6425 Carbide Boring Insert - TiCN/Al2O3/TiN Finish, 84° Trigon, 8° Relief Angle, 5mm Inscr Circle, 1.8mm Thick, 0.2mm Corner Radius
Item #: 66195835
Brand: Komet
Model #: W0010120026425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | WOHX |
| Insert Size | 03T102 |
| Manufacturer's Grade | BK6425 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 1.80 |
| Thickness (Decimal Inch) | 0.0709 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | G12 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Cutting Direction | Left Hand |
| Coating Process | CVD |
| Shape | Trigon |
