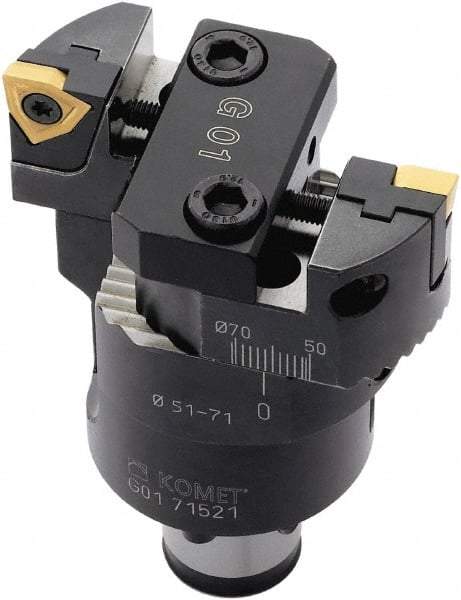

Komet - 50mm Body Diam, Manual Twin Cutter Boring Head - 51mm to 71mm Bore Diam
Item #: 66179417
Brand: Komet
Model #: G0172121
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 50.00 |
| Body Diameter (Decimal Inch) | 1.9690 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS50 |
| Series | TwinKom G01 |
| Minimum Bore Diameter (Decimal Inch) | 2.0080 |
| Minimum Bore Diameter (mm) | 51.00 |
| Maximum Bore Diameter (mm) | 71.00 |
| Maximum Bore Diameter (Decimal Inch) | 2.7950 |
| Projection (mm) | 135.00 |
| Projection (Decimal Inch) | 5.3150 |
