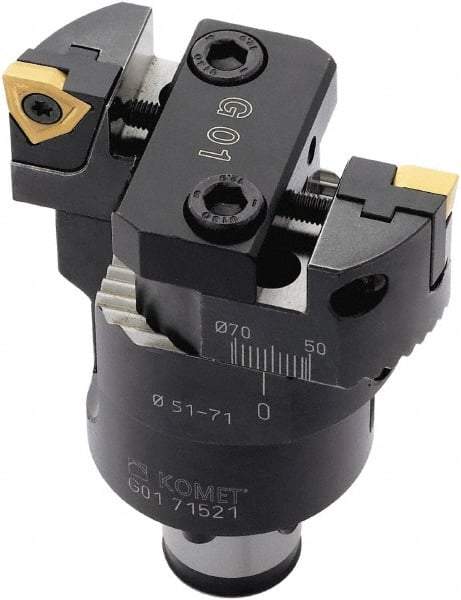

Komet - 63mm Body Diam, Manual Twin Cutter Boring Head - 64mm to 91mm Bore Diam
Item #: 66179409
Brand: Komet
Model #: G0172621
Exact Tooling IR#: 04
Features and Benefits
Boring heads with two cutters (double edges) are used for roughing operations and can remove material twice as fast as single edge cutters .
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Twin Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 63.00 |
| Body Diameter (Decimal Inch) | 2.4800 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS63 |
| Series | TwinKom G01 |
| Minimum Bore Diameter (Decimal Inch) | 2.5200 |
| Minimum Bore Diameter (mm) | 64.00 |
| Maximum Bore Diameter (mm) | 91.00 |
| Maximum Bore Diameter (Decimal Inch) | 3.5830 |
| Projection (mm) | 155.00 |
| Projection (Decimal Inch) | 6.1024 |
