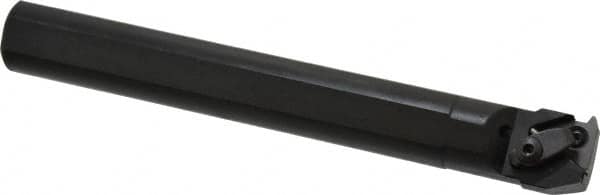

Seco - Internal Thread, Right Hand Cut, 0.957" Shank Width x 0.902" Shank Height Indexable Threading Toolholder - 7.917" OAL, 22NR Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 65984973
Brand: Seco
Model #: 30919
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.9570 |
| Shank Height (Decimal Inch) | 0.9020 |
| Overall Length (Decimal Inch) | 7.9170 |
| Overall Length (Inch) | 0 |
| Insert Compatibility | 22NR |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2000 |
| Center to Cutting Edge (Decimal Inch) | 0.7100 |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
