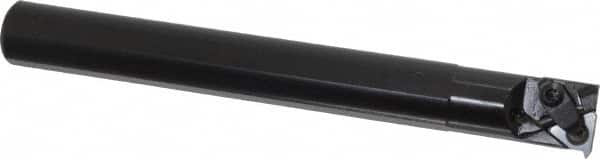

Seco - Internal Thread, Left Hand Cut, 0.707" Shank Width x 0.65" Shank Height Indexable Threading Toolholder - 7" OAL, 16NL Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 65984916
Brand: Seco
Model #: 30907
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7070 |
| Shank Height (Decimal Inch) | 0.6500 |
| Overall Length (Inch) | 7 |
| Insert Compatibility | 16NL |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9500 |
| Center to Cutting Edge (Decimal Inch) | 0.5200 |
| Minimum Bore Diameter (Decimal Inch) | 0.9500 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
