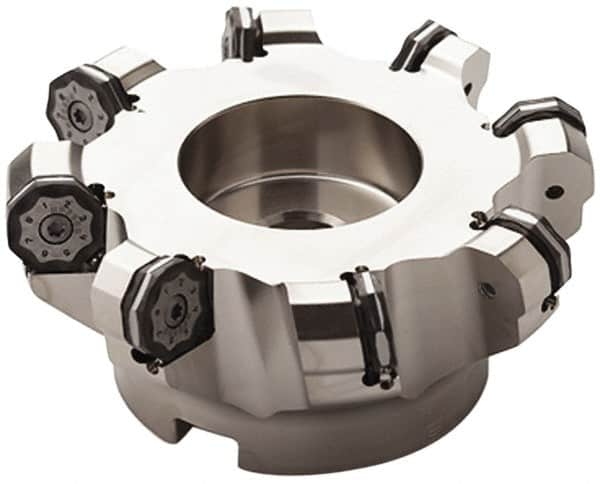

Seco - 3.15" Cut Diam, 1" Arbor Hole, 0.236" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 9 Inserts, ON.U 09 Insert, Right Hand Cut, 9 Flutes, Series R220.48
Item #: 65984759
Brand: Seco
Model #: 45142
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.1500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | ON.U 09 |
| Series | R220.48 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.48 |
| Number of Flutes | 9 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum Body Diameter (Decimal Inch) | 3.7400 |
| Maximum RPM | 4400 |
| Cutting Direction | Right Hand |
| Pitch | Close |
