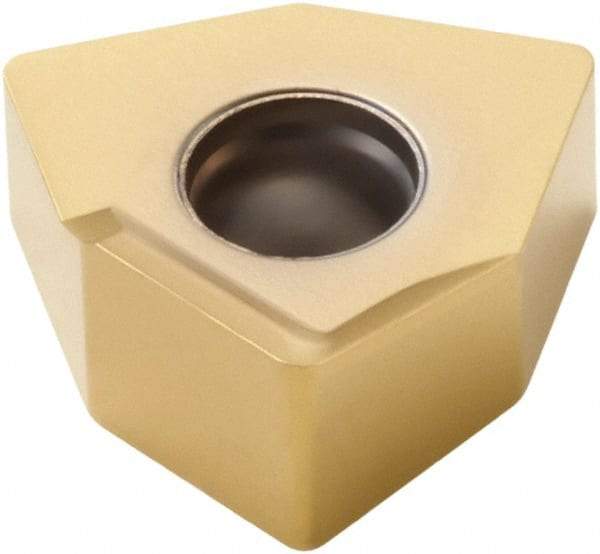

Seco - XNEX080608 M11 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.2508" Thick, 0.4913" Inscribed Circle, 0.8mm Corner Radius
Item #: 65947947
Brand: Seco
Model #: 70595
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080608 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.4913 |
| Thickness (Decimal Inch) | 0.2508 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 19 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Trigon |
| Chipbreaker | M11 |
| ISO Number | XNEX 080608ZZRM11 |
