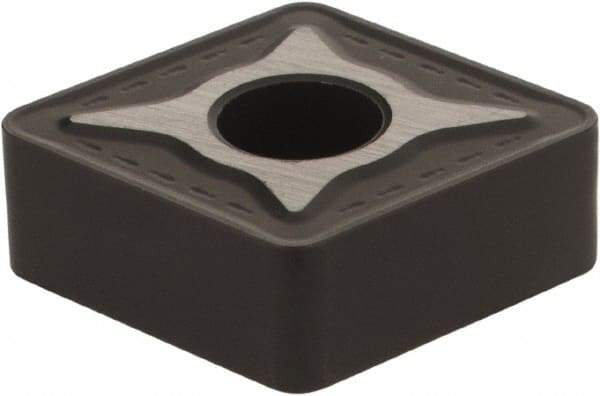

Seco - CNMG544 M6 Grade TP2500 Carbide Turning Insert - 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 65947822
Brand: Seco
Model #: 76182
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 544 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Manufacturer's Grade | TP2500 |
| Chip Breaker | M6 |
| Hole Diameter (Decimal Inch) | 0.2530 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNMG 544-M6 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
