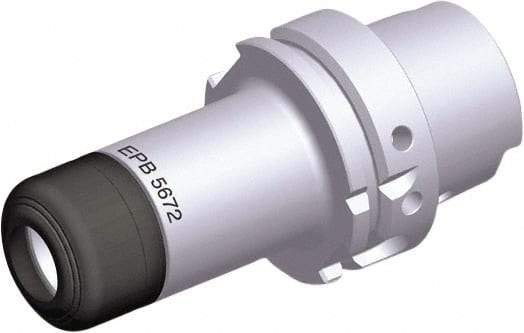

Seco - 1mm to 10mm Capacity, 5.118" Projection, HSK63A Hollow Taper, ER16 Collet Chuck - 6.378" OAL
Item #: 65942211
Brand: Seco
Model #: 09243
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (Decimal Inch) | 5.1180 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 6.3780 |
| Nose Diameter (Decimal Inch) | 1.1810 |
| PSC Code | 5136 |
| Balanced to (RPM) | 60000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1811 |
| Collet Nut Diameter (mm) | 30.00 |
