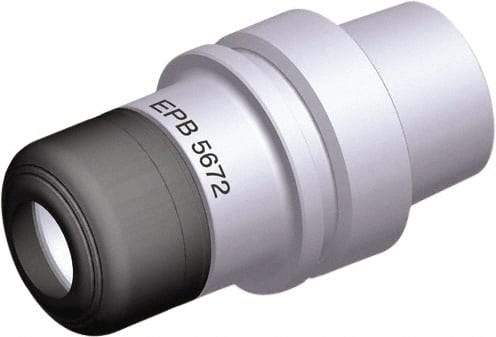

Seco - 1mm to 10mm Capacity, 55mm Projection, HSK25E Hollow Taper, ER16 Collet Chuck - 2.677" OAL
Item #: 65942104
Brand: Seco
Model #: 09263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK25E |
| Projection (mm) | 55.00 |
| Projection (Decimal Inch) | 2.1654 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.6770 |
| Nose Diameter (Decimal Inch) | 0.9450 |
| PSC Code | 5136 |
| Balanced to (RPM) | 50000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.9449 |
| Collet Nut Diameter (mm) | 24.00 |
