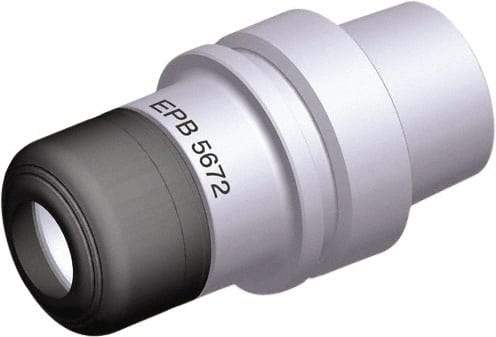

Seco - 1mm to 10mm Capacity, 60mm Projection, HSK32E Hollow Taper, ER16 Collet Chuck - 2.992" OAL
Item #: 65942096
Brand: Seco
Model #: 09266
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK32E |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.9920 |
| Nose Diameter (Decimal Inch) | 0.9450 |
| PSC Code | 5136 |
| Balanced to (RPM) | 50000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.9449 |
| Collet Nut Diameter (mm) | 24.00 |
