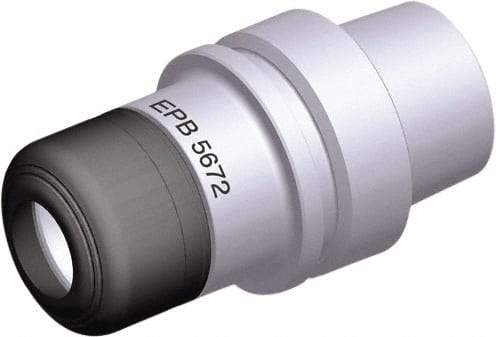

Seco - 2mm to 16mm Capacity, 70mm Projection, HSK50E Hollow Taper, ER25 Collet Chuck - 95mm OAL
Item #: 65942039
Brand: Seco
Model #: 09273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Hollow Taper |
| Taper Size | HSK50E |
| Projection (mm) | 70.00 |
| Projection (Decimal Inch) | 2.7600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| PSC Code | 5136 |
| Balanced to (RPM) | 42000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.5748 |
| Collet Nut Diameter (mm) | 40.00 |
