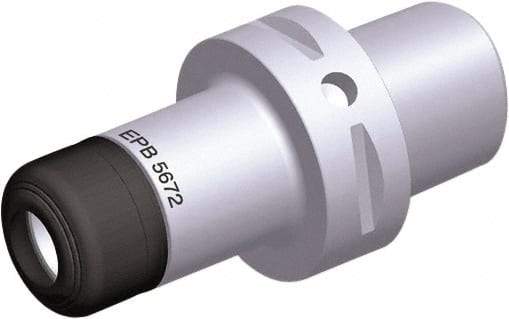

Seco - 1mm to 10mm Capacity, 65mm Projection, Modular Connection, ER16 Collet Chuck - 3.74" OAL
Item #: 65941767
Brand: Seco
Model #: 09326
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Projection (mm) | 65.00 |
| Projection (Decimal Inch) | 2.5600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 3.7400 |
| Nose Diameter (Decimal Inch) | 1.1810 |
| PSC Code | 5136 |
| Balanced to (RPM) | 60000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1811 |
| Collet Nut Diameter (mm) | 30.00 |
