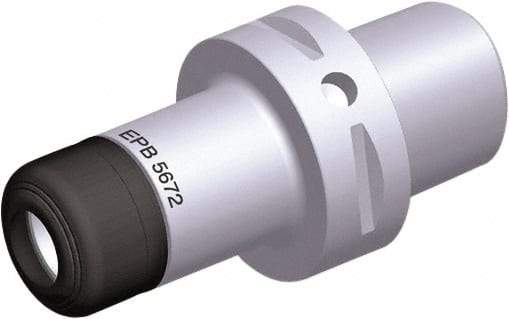

Seco - 1mm to 10mm Capacity, 60mm Projection, Modular Connection, ER16 Collet Chuck - 3.11" OAL
Item #: 65941718
Brand: Seco
Model #: 09319
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Modular Connection Size | C3 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 3.1100 |
| Nose Diameter (Decimal Inch) | 1.1810 |
| PSC Code | 5136 |
| Balanced to (RPM) | 60000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1811 |
| Collet Nut Diameter (mm) | 30.00 |
