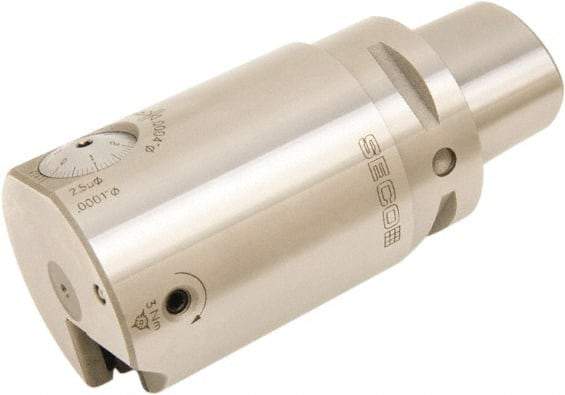

Seco - 2-1/8" Body Diam, Manual Single Cutter Boring Head - 2.52" to 3.39" Bore Diam
Item #: 65935900
Brand: Seco
Model #: 75669
Exact Tooling IR#: 04
Features and Benefits
Boring heads with a single cutter (single edge) are used for general purpose finishing and roughing operations. They may also be used where machine power is limited.
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Single Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (Decimal Inch) | 2.1260 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Series | A780 |
| Minimum Bore Diameter (Decimal Inch) | 2.5200 |
| Maximum Bore Diameter (Decimal Inch) | 3.3900 |
| Projection (Decimal Inch) | 3.6220 |
| Diameter Direct Reading (Decimal Inch) | 0.0004 |
| Insert Holder Size | 50 |
