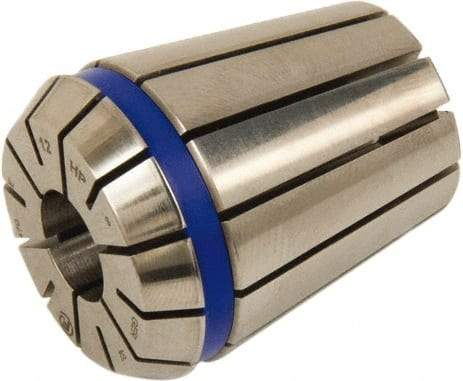

Seco - 2mm ER32 Collet - 0.003mm TIR, 40mm OAL, 33mm Overall Diam
Item #: 65935033
Brand: Seco
Model #: 09535
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER32 |
| Size Range (mm) | 2.00 |
| Size (Decimal Inch) | 0.0787 |
| TIR (mm) | 0.0030 |
| TIR (Decimal Inch) | 0.000118 |
| Maximum Collet Capacity (mm) | 2.00 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Diameter (mm) | 33.00 |
| Overall Diameter (Decimal Inch) | 1.2992 |
| PSC Code | 5136 |
