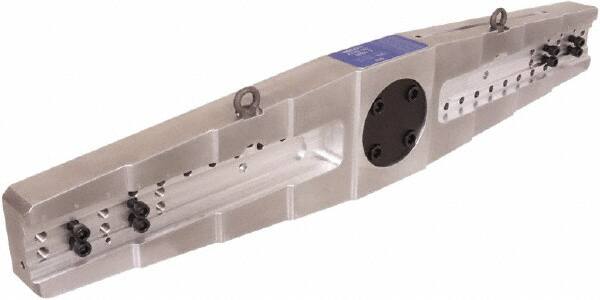

Seco - 1,104 to 1,630mm Bore, 1,090mm OAL, 80mm Thick, 200mm Wide, Boring Head Bridge Bar - For Use with Rough Boring Heads, Compatible with Series A731S
Item #: 65934606
Brand: Seco
Model #: 09585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Bridge Bar |
| System Compatibility | EPB Tooling |
| Minimum Bore Size (mm) | 1104.00 |
| Minimum Bore Size (Decimal Inch) | 43.4646 |
| Maximum Bore Size (mm) | 1630.00 |
| Maximum Bore Size (Decimal Inch) | 64.1732 |
| Overall Length (mm) | 1090.00 |
| Overall Length (Decimal Inch) | 42.9134 |
| Thickness (mm) | 80.00 |
| Thickness (Decimal Inch) | 3.1496 |
| Width (mm) | 200.00 |
| Width (Decimal Inch) | 7.8740 |
| For Use With | Rough Boring Heads |
| Series Compatibility | A731S |
