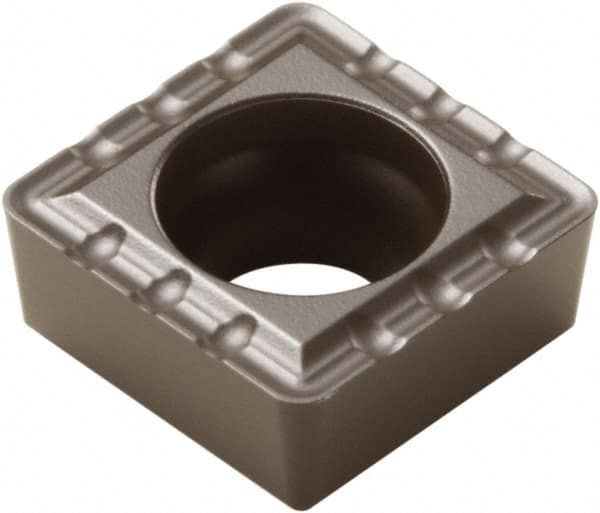

Seco - SCGX060204 P1 Grade DP3000 Carbide Indexable Drill Insert - TiCN/Al2O4 Finish, Square, 1/4" Inscribed Circle
Item #: 65934531
Brand: Seco
Model #: 09916
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | DP3000 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Shape | Square |
| Width (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.2500 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiCN/Al2O4 |
| Coating Process | Duratomic |
| Chipbreaker | P1 |
