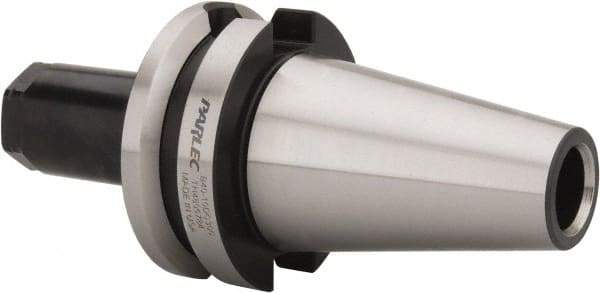

Parlec - 3/64" to 9/16" Capacity, 2.95" Projection, BT40 Taper Shank, DA100 Collet Chuck - 0.0004" TIR, Through-Spindle
Item #: 65829293
Brand: Parlec
Model #: B40-10DC300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA100 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 2.9500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/64 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Nose Diameter (Decimal Inch) | 1.0600 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
