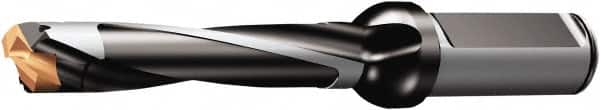

Sandvik Coromant - 13 to 13.49mm Diam, 5.18806xD, 2.737" Max Depth, 5/8" Shank Diam, 5.2362" OAL, Replaceable Tip Drill - 870-1340-12-PM Insert, 12 Seat Size, 870..LX-5 Toolholder, Series CoroDrill 870
Item #: 65757593
Brand: Sandvik Coromant
Model #: 6035654
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 5.18806xD |
| Maximum Drill Depth (Decimal Inch) | 2.7370 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | 870-1340-12-PM |
| Insert Seat Size | 12 |
| Toolholder Style | 870..LX-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (Decimal Inch) | 0.0811 |
| Body Length (Decimal Inch) | 2.8347 |
| Overall Length (Decimal Inch) | 5.2362 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.9709 |
