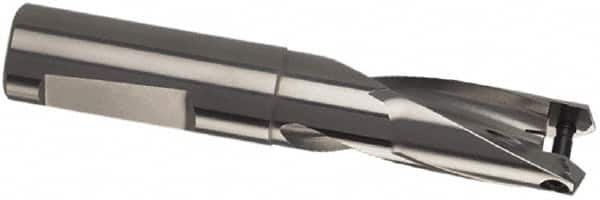

Guhring - 13 to 13.49mm Diam, 1.5xD, 22.6mm Max Depth, 14mm Shank Diam, 90mm Flute, 90mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 130 Seat Size, 1.5xD HT 800 WP Toolholder, Series 4106
Item #: 65716532
Brand: Guhring
Model #: 9041060130000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 22.60 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 130 |
| Toolholder Style | 1.5xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 90.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 90.00 |
| Toolholder Material | High Speed Steel |
