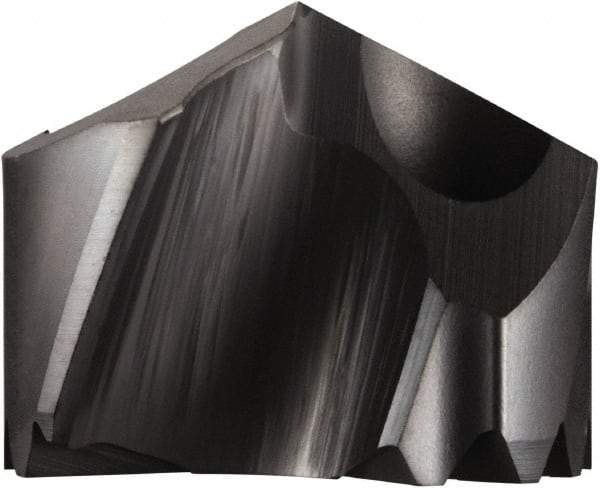

DORMER - Series R950, 1-3/8" Diam 140° Replaceable Drill Tip - Carbide, TiAlN Finish, Through Coolant
Item #: 65690224
Brand: DORMER
Model #: 46104532
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 34.93 |
| Diameter (Decimal Inch) | 1.3752 |
| Diameter (Inch) | 1-3/8 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Micrograin |
| Series | R950 |
| Coating | TiAlN |
| Through Coolant | Through Coolant |
| Height (mm) | 23.00 |
| Height (Decimal Inch) | 0.9062 |
