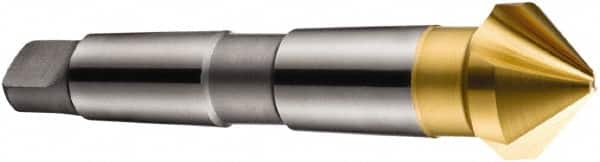

DORMER - 3 Flute 90° High Speed Steel Countersink - TiN Finish, 150mm OAL, Single End, Morse Taper Shank, Right Hand Cut
Item #: 65670986
Brand: DORMER
Model #: 0109540
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Number of Flutes | 3 |
| Included Angle | 90 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (mm) | 14.00 |
| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.9100 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Morse Taper |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Magnesium; Nickel; Nickel Alloy; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloy |
