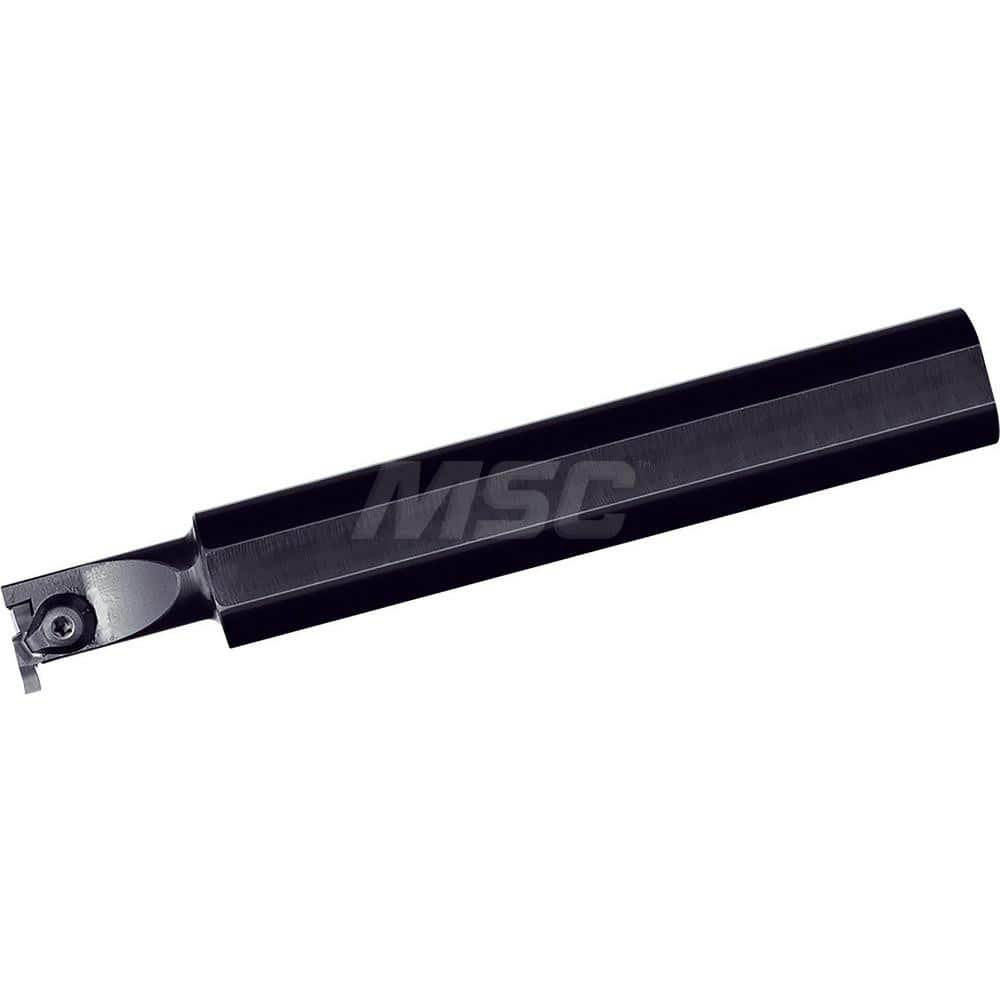

Indexable Grooving Toolholder: SIGIVR2021, Internal Right Hand, 0.1772″ Max Depth, 1-1/4″ Shank Width, No
Item #: 65584104
Brand: Kyocera
Model #: 8802467
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Minimum Groove Width (Inch) | 1/8 |
| Toolholder Style | GVIG |
| Maximum Groove Width (Inch) | 1/8 |
| Insert Holding Method | Top Clamp |
| Insert Compatibility | GVR21-? |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Series | GVIG |
| Overall Length (Inch) | 7-7/8 |
| Overall Length (Decimal Inch) | 7.8750 |
| Multi-use Tool | No |
| Cutting Tool Application | Internal Grooving; Small Parts Machining |
| Vibration Dampening | No |
| Maximum Bore Depth (Decimal Inch) | 25.0000 |
| Manufacturers Catalog Number | SIGIVR2021 |
| Toolholder Material | Steel |
| Coolant Through | No |
