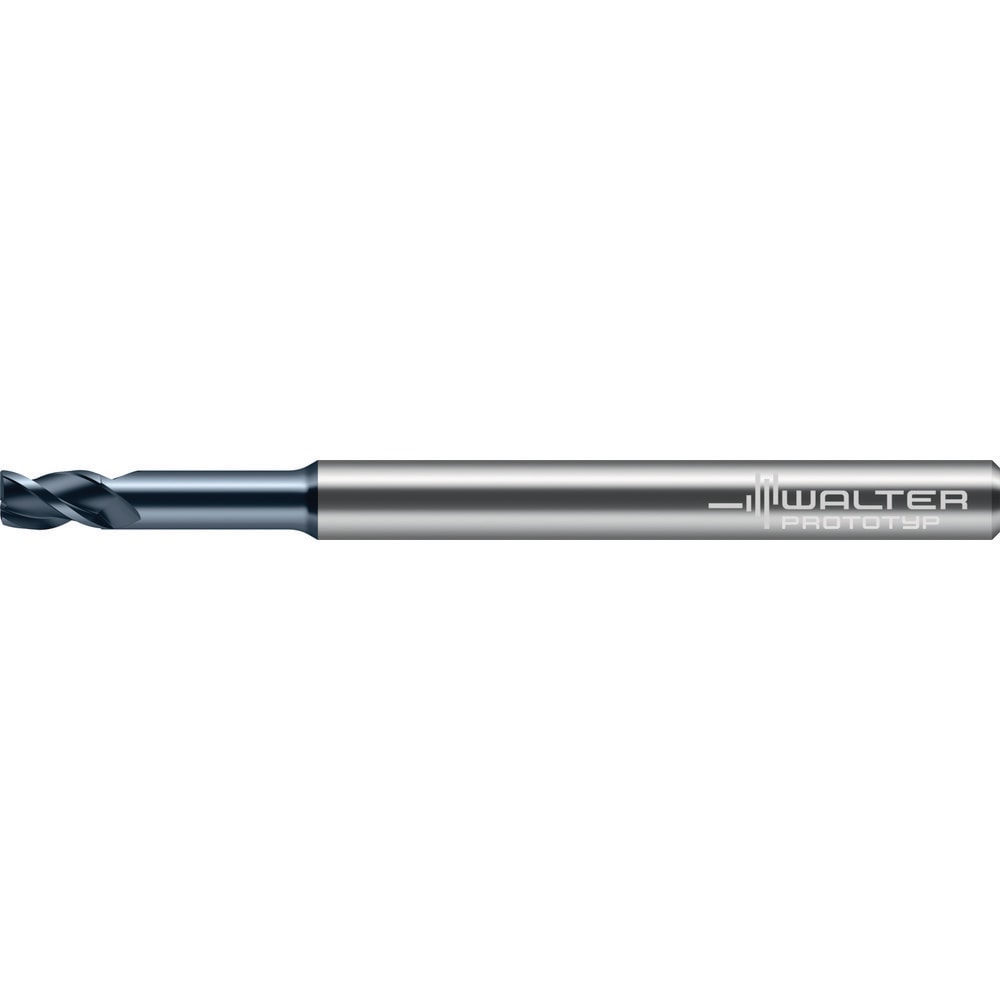

Corner Radius End Mill: 2 mm Dia, 3.00 mm LOC, 0.20 mm Radius, 3 Flute, Solid Carbide
Item #: 75757542
Brand: Walter-Prototyp
Model #: 8415129
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 3.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | nACRo |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.20 |
| Overall Length (mm) | 50.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 2.00 |
| Reach Length (mm) | 28.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Series | MA230-A-3-R-C |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MA230-02.0A3D020F-WJ30EN |
| Country of Origin | UNITED STATES |
