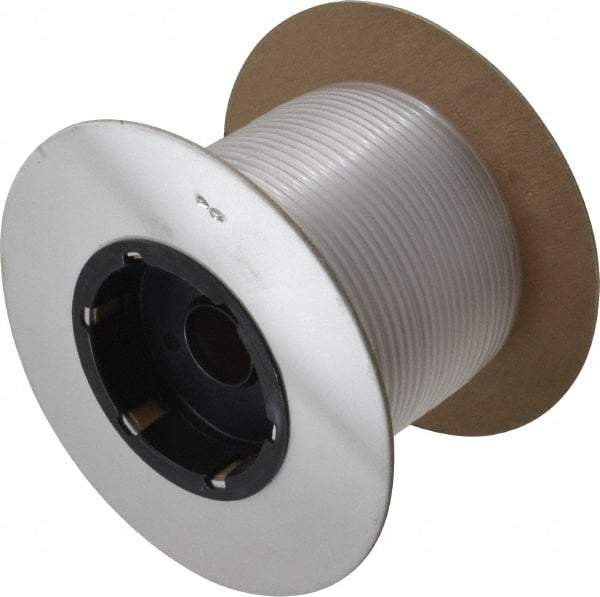

Made in USA - 2:1, PVC Heat Shrink Electrical Tubing - Clear
Item #: 65546087
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | PVC |
| Shrink Ratio | 2:1 |
| Overall Length (Feet) | 125.00 |
| Color | Clear |
| Inside Diameter Before Shrinking (mm) | 3.18 |
| Inside Diameter Before Shrinking (Inch) | 1/8 |
| Inside Diameter Before Shrinking (Decimal Inch) | 1/8 |
| Inside Diameter After Shrinking (Decimal Inch) | 0.0630 |
| Inside Diameter After Shrinking (mm) | 1.60 |
| Shrink Temperature (F) | 212.00 |
| Resistance Features | Chemical Resistant; Flame Resistant; Fungus Resistant; Moisture Resistant; Oil Resistant; Sunlight Resistant; UV Resistant |
| Wall Thickness After Shrinking (mm) | 0.64 |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0250 |
| Maximum Operating Temperature (F) | 221 |
| Minimum Operating Temperature (F) | -4 |
| Standards Met | ASTM D3150; CSA OFT; RoHS Compliant; SAE-AMS-DTL-23053/2 Class 2; UL 224 VW-1 |
