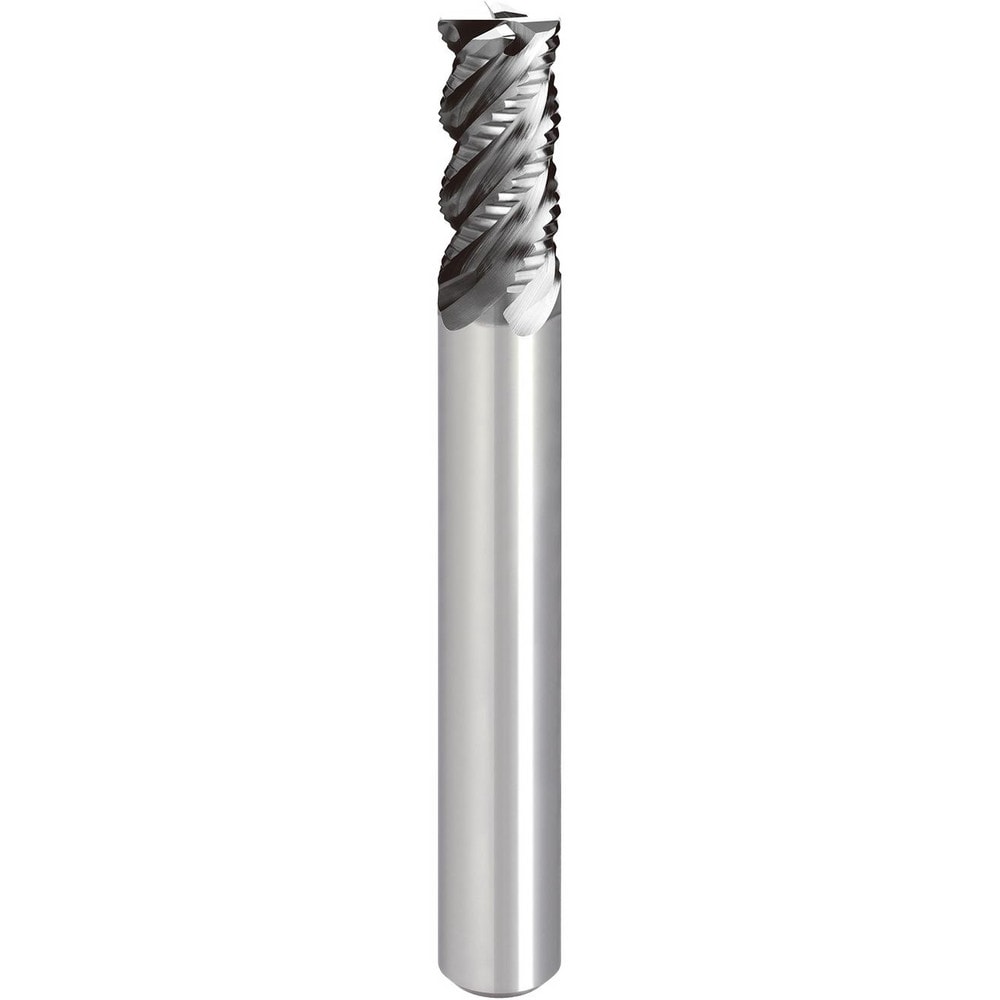

Roughing End Mill: 9.00 mm Dia, 4 Flute, Variable Pitch, 0.50 mm Corner Radius, Single End, Solid Carbide, Chipbreaker
Item #: 54340062
Brand: Mitsubishi
Model #: 803348
Product Specifications
| Mill Diameter (mm) | 9.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Pitch | Variable |
| Length of Cut (mm) | 22.00 |
| Coating/Finish | AlCrN |
| Coolant Through | No |
| Centercutting | Yes |
| End Type | Corner Radius |
| Mill Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 10.00 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 43 |
| Material Grade | Solid Carbide |
| Single Or Double End | Single |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Type | Short |
| Flute Type | Spiral |
| Shank Diameter Tolerance | h6 |
| UNSPSC Code | 27112803 |
