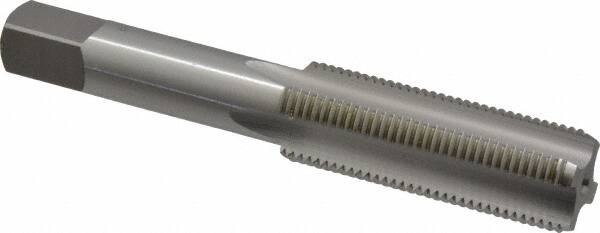

OSG - 5/8-18 UNF 2B 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Bottoming, Right Hand Thread, 3-13/16" OAL, 1-13/16" Thread Length, H5 Limit, Oversize
Item #: 65267197
Brand: OSG
Model #: 1144100
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 5/8-18 |
| Class of Fit | 2B |
| Thread Limit | H5 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Inch) | 3-13/16 |
| Oversize | No |
| Series/List | 101/102 |
| Thread Length (Inch) | 1-13/16 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3600 |
| Material Application | Aluminum; Carbon Steel; Cast Iron |
