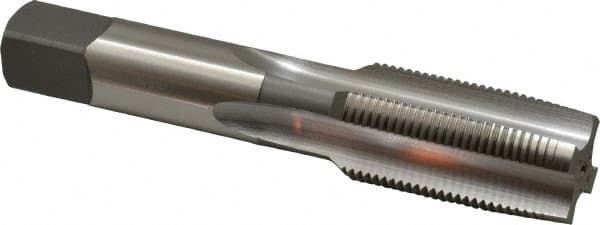

OSG - 1-14 UNS 3B 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Taper, Right Hand Thread, 5-1/8" OAL, 2-1/2" Thread Length, H4 Limit, Oversize
Item #: 65254161
Brand: OSG
Model #: 1136600
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1-14 |
| Class of Fit | 3B |
| Thread Limit | H4 |
| Number of Flutes | 4 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNS |
| Overall Length (Inch) | 5-1/8 |
| Oversize | No |
| Series/List | 101/102 |
| Thread Length (Inch) | 2-1/2 |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.6000 |
| Material Application | Aluminum; Carbon Steel; Cast Iron |
